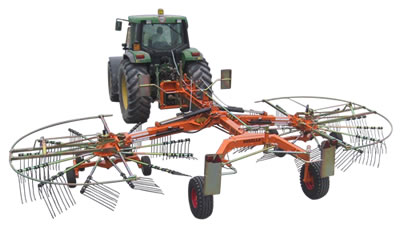

    DOUBLE ROTOR ROTARY RAKES


6810 - 7810 - 8610
(CARRIED ON THREE POINTS WITH REAR SUPPORTING WHEELS)





The swath obtained in the widest opening position is ideal for pressing into even balls and suitable for farm plant drying.





TECHNICAL FEATURES 6510/9 SP 6810/11 SP 7510/11 SP 7810/13 SP 8610/13 SP
• Swath formation centrale centrale centrale centrale centrale
• Rotor width adjustment
0 to 50 cm
mechanical
0 to 50 cm
mechanical
0 to 50 cm
mechanical
0 to 80 cm
hydraulic
0 to 80 cm
hydraulic
• Manual rotor height adjustment standard standard standard standard standard
• Number of gearboxes in oil bath 2 2 2 2 2
• Working width with swath 6,00 - 6,50 m 6,20 - 6,80 m 7,00 - 7,50 m 7,00 - 7,80 m 8,00 - 8,60 m
• Number of fork arms 9 × 2 11 × 2 11 × 2 13 × 2 13 × 2
• Number of forks (spring teeth) per arm 4 4 4 4 5
• Extractable arms standard standard standard standard standard
• Self-supporting frame with rear wheels
 and 2-point linkage to tractor
• Single-rotor working device
standard standard standard standard standard
• Rear steering axle standard standard standard standard standard
• Width in transport position 2,50 m 2,50 m 2,50 m 2,50 m 2,50 m
• Total length (transport position) 5,30 m 5,30 m 5,50 m 5,50 m 6,00 m
• Weight with transmission 1650 kg 1800 kg 1850 kg 1900 kg 2100 kg
• Transmission with PTO shaft and
   fifth wheel
1 1 1 1 1
• Secondary transmission with
  PTO shaft and clutch
2 2 2 2 2
• Min. power required 55/40 Hp/Kw 55/40 Hp/Kw 60/45 Hp/Kw 70/51 Hp/Kw 80/58 Hp/Kw
• Lighting system for road transportation standard standard standard standard standard
